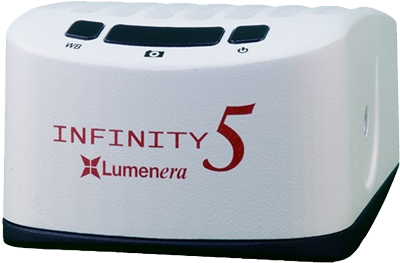

Lumenera 5-5 High Speed 5 Megapixel CMOS Camera models
The Lumenera INFINITY 5 series of CMOS based cameras provide the flexibility of HDMI and USB3.0 interface for image acquisition. They offer fast live image viewing and capture. Ideal for applications requiring high frame frame rates. The CMOS sensors feature global shutter to eliminate image artifacts caused during moving image capture.
This new 3 Megapixel series, 5-3C and 5-3M, now offer high speed and high resolution using the new generation Sony sensor (IMX252). The 5-3 models offer simultaneous image viewing and acquisition via HDMI and USB3.0 interfaces. Frame rate is an exceptional 120fps. The camera can be used without a PC from the HDMI direct interface and on-board camera soft-touch controls.
All models come with the Infinity CAPTURE and TWAIN software packages. We also offer more application specific advanced software packages.
The Lumenera new 5-3, 5-5 series offers superior performance at significantly lower cost than the competitors. Compare and save.
- Call Us: 916-880-8575
- Serving Our Community Since 1972
- About Us
- Inspection booths
-
Products
-
- LED Illumination Products
- Ergonomic Inspection Booths
- Motorized Microscope Inspection
-
Microscope
-
- Student Microscopes
- ERGONOMIC Microscopes
- STEREO Microscopes
- Industrial Inspection
- Biomedical
- RZ Research Zoom Stereomicroscope
- SPZ Series Zoom Stereo Microscope
- SZ645 Zoom Stereomicroscope
- SZ445/SZ460 Zoom Stereomicroscope
- Labomed Luxeo 6z 6:1 Zoom Stereomicroscope
- SZ4 Stereozoom Microscope
- Labomed Luxeo 4Z Stereozoom Microscope
- Labomed Luxeo 4D Digital Stereozoom Microscope
- Stereo Microscope Configuration Guide
- INDUSTRIAL Compound
- BIOMEDICAL Compound
-
- Microscope by Speciality
- Microscope Components/Upgrades
- Custom Microscope Build
- Macro-Zoom Inspection Products
- Digital Cameras and Imaging
- Video Imaging(NTSC/PAL)
- Illumination Products
- Specialty Replacement Lamps
- Used/Rebuilt Microscope Systems
- Tutorials/Downloads
-
- CLEARANCE!
- Service
- Support
Lumenera Infinity 5-3 digital high speed CMOS scientific microscope camera
|
|
• 3 MegaPixel Color or Monochrome 1/1.8" CMOS Sensor
- high speed 120fps full resolution
- Global shutter to reduce motion artifacts
- 2048 x 1536 Max. Resolution
- 3.45um x 3.45um pixels
- 8 or 12 bit depth
- Sony IMX252 high sensitivity sensor
• Simultaneous USB3 and HDMI outputs
- can be operated without a PC using HDMI
- Control buttons located on camera
• C-mount lens mount - best with .67x coupler
• Auto/manual Exposure control
• Auto/manual White balance
• Programmable Gain control
• USB 3.0 interface; external 5vdc supply included
• Included software:
- Infinity Capture - Basic capture and video
- TWAIN 3rd party software interface
• Warranty: 4 years
- Optional LuIAP-2 package extends to 5 years
• All camera models are RoHS compliant
• Dimensions 3.85” L x 2.00” W x 2.75” H
• Manufacturer: Lumenera Corp
Models
• Infinity 2 models: CCD 1.4MP to 3.2MP models for high end applications (color or monochrome)
• Infinity 3 models: CCD peltier cooled 1.4 megapixel models for very low light applications (color or monochrome)
• Infinity X32 models: CCD variable resolution 2 - 32 megapixel models (color or monochrome)
