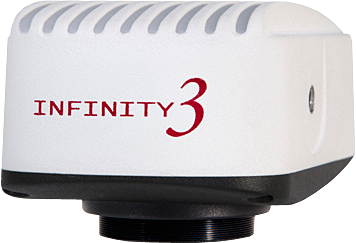

Lumenera Infinity 3-3UR digital un-cooled CCD research microscope camera

Lumenera 3-1UR research grade non-cooled CCD microscope camera models for fluorescence and extremely low light microscope applications

GENERAL FEATURES
PDF DATA SHEET

� 2.8 MegaPixel Color/Monochrome 2/3" CCD Sensor

- Non-cooled version of 3-1 models

- Very-high sensitivity, low noise

- Superior Extended dynamic range

- 1936 x 1456 Max. Resolution

- 4.54um x 4.54um pixels

- Sony ICX674 high speed, high sensitivity sensor

� Blazing Fast 53 fps at full resolution!!

- 128MB on-board memory for frame rate buffering

- 109 fps with ROI and Binning

� C-mount lens mount - best with 0.67x

� Auto/manual Exposure control

� Auto/manual White balance

� Programmable Gain control

� USB 3.0 interface; external 5vdc supply included

� Included software:
- Infinity Analyze - Complete Image Analysis
- Infinity Capture - Basic capture and video
- TWAIN 3rd party software interface

� Warranty: 2 years
- Optional LuIAP-2 package extends to 5 years

� All camera models are RoHS compliant

� Dimensions 3.85� L x 2.00� W x 2.75� H

� Manufacturer: Lumenera Corp

INFINITY 3-3UR Series Spec Sheet

Lumenera Camera Cross Reference Chart

Lumenera Infinity Camera Series Overview Brochure

Infinity Analyze overview video

Lumenera Infinity Camera FAQ's

Lumenera Warranty Policy

Advantage Pack Details

Lumenera Non-COOLED CCD sensor 3-3UR models

The Lumenera INFINITY 3 series of un-cooled CCD based cameras provide extreme low light sensitivity and dynamic range. They are ideal for quantitative analysis, extremely low light, and long exposure applications (e.g. � Trace fluorescence, astronomy, FRET, TIRF, FRAP, calcium, bio-luminescence, live cell imaging, spectroscopy, cytometry).

The new 2.83 Megapixel series, 3-3URC and 3-3URM, now offer ultra-high speed, high resolution fluorescence imaging using an un-cooled new generation Sony sensor (ICX674). The 3-3UR models provide extremely low dark current and readout noise with high quantum efficiency with fast frame rates. Ideal for high resolution fluorescence, NearIR (NIR), GFP, FISH, NIR, FRET fluorescence applications.

All models come with the Advanced Infinity ANALYZE image analysis, basic Infinity CAPTURE, and TWAIN software packages. We also offer more application specific advanced software packages.

The Lumenera 3-1 and new 3-3 series offers superior performance at significantly lower cost than the competitors. Compare and save.

Models

INFINITY 3-3URC: 3 Megapixel non-cooled CCD color camera

Lumenera Corp

MSRP Price: $4,500.00

Request Latest Pricing

View More

INFINITY 3-3URM: 3 Megapixel non-cooled CCD monochrome camera

Lumenera Corp

MSRP Price: $4,500.00

Request Latest Pricing

View More

Lumenera LuIAP-2 Advantage Pack-2

Lumenera Corp (Canada)

Price: $500.00

View More

� Infinity 1 series: CMOS lower cost models ranging from 1.3MP to 5MP
� Infinity 2 models: CCD 1.4MP to 3.2MP models for high end applications (color or monochrome)
� Infinity 3 models: CCD peltier cooled 1.4 megapixel models for very low light applications (color or monochrome)
� Infinity X32 models: CCD variable resolution 2 - 32 megapixel models (color or monochrome)

Options:
� Camera Adapters : C-mount adapters for all microscope makes and models
� Camera Software : Various software packages for the Lumenera cameras
