OEM Optical. Microscopes, parts, optics, microscope cameras
Search:











Microscope Eyepiece Reticles Stage Micrometers

Products Catalog Microscope Optics and Replacement Parts Eyepiece Reticles and Micrometers








Eyepiece Measurement reticles for Nikon, Olympus, Leica, and more microscopes



GENERAL FEATURES:

Reticles and Stage micrometers for microscopes
- Use for accurate microscope measurements
- Can be inserted into most eyepieces

Various reticle diameters and patterns

Stage micrometers in metric and inch versions

High resolution black scales on glass

Comparable to factory versions

Excellent optical performance

Use stage micrometer to calibrate


Eyepiece Measurement Reticles and Stage Micrometers:

Allow accurate measurements with compound and stereo microscopes when properly calibrated with a stage micrometer. Stereozoom models with detent stops at different magnifications are recommended for consistent measurements using a zoom microscope. We offer lower cost alternatives that fit and perform like the factory items at a fraction of the dealer cost. These reticles fit most makes of microscopes. Contact us for additional fitment information


MODELS:

SA112103.pngMEASUREMENT RETICLES for eyepieces - XY crosshair only
- Crosshair X and Y axis, no measurement divisions
- Available in 20mm, 24mm, 27mm diameters
- 1.5mm thick optical glass
- Black lines on clear glass

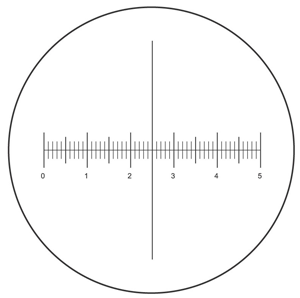

SA112101.pngMEASUREMENT RETICLES for eyepieces - crosshair 10mm/100div
- Crosshair scale 10mm/100 divisions, 20mm/200 divisions(27mm)
- Available in 20mm, 24mm, 27mm diameters
- 1.5mm thick optical glass
- Black scale on clear glass





SA112102.pngMEASUREMENT RETICLES for eyepieces - double crosshair 10mm/100div
- Crosshair scales on both XY axis 10mm / 100 divisions
- Available in 20mm, 24mm diameters
- 1.5mm thick optical glass
- Black scale on clear glass





SA112104.pngMEASUREMENT RETICLES for eyepieces - GRID 10mm x10mm
- Grid pattern 10mm x 10mm divisions
- Available in 20mm, 24mm diameters
- 1.5mm thick optical glass
- Black lines on clear glass





SA112105.pngMEASUREMENT RETICLES for eyepieces - Multi-scale
- Multi-scale, 0-180/10 protractor, Linear scale 10mm/100/0.5mm
- Available in 24mm diameter
- 1.5mm thick optical glass
- Black lines on clear glass





MEASUREMENT Scale Micrometer - Linear inch
MSRP: $160.00
Our Price:$105.00

- Inch scale linear micrometers
- Scale: 1"inch/100/0.001" inch
- Use to calibrate a microscope for measurements
- 75mmx 35mm x 2mm optical glass slide
- Black scale on clear glass



Manufacturer: Non-USA




MEASUREMENT Scale Micrometer - Linear Metric
MSRP: $160.00
Our Price:$105.00

- Metric scale linear micrometers
- Scale: 1mm/100/0.01mm
- Use to calibrate a microscope for measurements
- 75mmx 35mm x 2mm optical glass slide
- Black scale on clear glass



Manufacturer: Non-USA



: PDF DATA SHEET:
 N/A
