MEIJI MT7000 Metallurgical Microscopes

Products Catalog Microscopes INDUSTRIAL Compound Meiji MT7000 Brightfield - Reflected

Products Catalog MICROSCOPES by SPECIALTY Semiconductor Inspection Meiji MT7000 Brightfield - Reflected




MEIJI MT7000 Metallurgical Microscopes, Metallurgical microscope, semiconductor microscope, metal grain microscope
GENERAL FEATURES:

Brightfield and Simple POL modes

Reflected light observation

New design Brightfield Plan optics
- Infinity corrected ICOS series

30W Koehler reflected light illumination
- Built-in base for compact footprint

Siedentopf design view heads
- Optional tilting model

Widefield High eyepoint eyepieces

ALL series come standard with:
- 4 x 4 travel stage
- 5/10/20/50X objectives
- SWH10/22 eyepieces
- Quintuple nosepiece
- Blue,Green,ND50,POL filter set

Dimensions (D x W) : 263mm x 176mm

Manufacturer: Meiji Techno



Meiji MT7000 Brightfield Microscope:

The Meiji MT7000 metallurgical microscope series utilizes an all new design of infinity corrected, brightfield EPI plan optics. These infinity corrected optics combined with Koehler illumination provide excellent clarity, contrast, and flat field for metallurgical microscopy. Excellent choice for brightfield semiconductor inspection. Auto-sensing power supply assures worldwide operation.

MODELS:

MT7000 Configuration: Brightfield - Binocular
MSRP: $5,800.00
Our Price:$5,046.00

- Siedentopf Binocular View Head (MA815)
- SWH10X/220 eyepiece F.N 22 (MA817)
- Plan Epi 5X / 0.10 Brightfield objective, WD = 20mm (MA870)
- Plan Epi 10X / 0.25 Brightfield objective, WD = 7.48mm (MA871)
- Plan Epi 20X / 0.40 Brightfield objective, WD = 5.20mm (MA872)
- Plan Epi 50X / 0.75 Brightfield objective, WD = 0.38mm (MA873)
- Stage: 4 x 4 travel ceramic coated flat top (MA942)
- 6V 30W Halogen Koehler vertical Illuminator (MA927)



Manufacturer: Meiji Techno

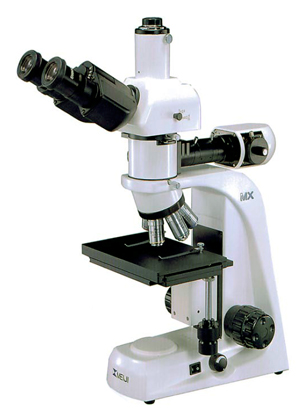

MT7100 Configuration: Brightfield - Trinocular
MSRP: $6,000.00
Our Price:$5,220.00

- Siedentopf Trinocular View Head (MA816)
- SWH10X/220 eyepiece F.N 22 (MA817)
- Plan Epi 5X / 0.10 Brightfield objective, WD = 20mm (MA870)
- Plan Epi 10X / 0.25 Brightfield objective, WD = 7.48mm (MA871)
- Plan Epi 20X / 0.40 Brightfield objective, WD = 5.20mm (MA872)
- Plan Epi 50X / 0.75 Brightfield objective, WD = 0.38mm (MA873)
- Stage: 4 x 4 travel ceramic coated flat top (MA942)
- 6V 30W Halogen Koehler vertical Illuminator (MA927)



Manufacturer: Meiji Techno





  OPTICAL COMPONENTS: (Build up your own configuration)



MA815: Binocular View Head
MSRP: $480.00
Our Price:$430.00

- Siedentopf design
- 30 inclined
- Interpupillary range : 53mm - 75mm
- Graduated diopter on left eyetube (30mm eyetube)
- Eyepieces not included



Manufacturer: Meiji Techno




MA816: Trinocular View Head
MSRP: $680.00
Our Price:$612.00

- Siedentopf design
- 30˚ inclined
- Interpupillary range : 53mm 75mm
- Graduated diopter on left eyetube (30mm eyetube)
- Eyepieces not included



Manufacturer: Meiji Techno




MA957: ERGONOMIC binocular View Head
MSRP: $780.00
Our Price:$702.00

- Siedentopf design
- Tilting range10˚ to 30˚ incline
- Interpupillary range : 53mm 75mm
- Graduated diopter on left eyetube (30mm eyetube)
- Eyepieces not included



Manufacturer: Meiji Techno




oem/na.jpgEyepieces : (30.0 mm O.D Eyetube)




planepi_bd_objectives-sm.jpgObjectives: Brightfield / Darkfield, EpiPlan, Infinity corrected.





  MODULAR ACCESSORIES



MA927: Vertical Illuminator module (Brightfield)
MSRP: $900.00
Our Price:$810.00
- 6v 30w lamphousing
- These items are included standard on MX7000 and MX7100 models

Manufacturer: Meiji Techno




oem/na.jpg
MA958: Photo/Video Attachment for ERGO head (MA957)
MSRP: $500.00
Our Price:$450.00
- 80/20 sliding beam-splitter
- Necessary for camera use with ergonomic (tilting) head

Manufacturer: Meiji Techno




metallurgical_std_filters-s.jpgCoaxial Filter Sets MEIJI




oem/meiji_cmount_lens-large1.jpgC-Mount Video Lenses
-Use with Model IM7200 Microscope
-Use with MA816/10 trinocular head option




oem/na.jpg
MA942 : Mechanical stage
MSRP: $600.00
Our Price:$540.00
- 4 x 4 travel ceramic coated
- Flat top plate

Manufacturer: Meiji Techno




oem/cox_filters-large1.jpgCoaxial Filter Sets (20mm in metal mount)




infinity1-product-1.jpgInfinity 1

- Includes imaging and archiving software (Windows Xp, 2000, Vista)
- USB2.0 high speed interface required
- Use with 0.5x C-mount adapter #3136010 not included






cross-line_reticle_nosc-sm.jpgEYEPIECE RETICLES Cross line (no scale)
-For MA817 & MA859 eyepieces (25mm diameter) use MA523 : Crossline
-For MA818 & MA819 eyepieces (19mm diameter) use MA279 : Crossline




oem/xaxis_graduated_reticle-lg1.jpgEYEPIECE RETICLES Linear scale

For MA817 & MA859 eyepieces (25mm diameter) use MA506 : 10mm divided into 100 units or MA509 : 5mm divided into 100 units

For MA818 & MA819 eyepieces (19mm diameter) use MA280 : 10mm divided into 100 units or MA281 : 5mm divided into 100 units






infinity2-1.jpgInfinity 2

- Higher low light sensitivity than CMOS cameras (excellent for phase contrast)
- Includes imaging and archiving software (Windows Xp, 2000, Vista)
- USB2.0 high speed interface required
- Use with 0.5x C-mount adapter #3136010 not included






Stage Micrometer Metal for reflected light





oem/na.jpg
MA709: Dust cover
MSRP: $12.00
Our Price:$10.00






oem/cross-line_reticle_grad1.jpgEYEPIECE RETICLES Cross scale

For MA732 & MA734 eyepieces (19mm diameter)
For MA817 & MA859 eyepieces (25mm diameter) use MA542 : Cross-line with 0.1mm ticks
For MA818 & MA819 eyepieces (19mm diameter) use MA539 : Cross-line with 0.1mm ticks






: PDF DATA SHEET:
 Meiji MT7000 Specifications.PDF
