Techniquip MODEL 21AC Illuminators

Products Catalog LIGHTING PRODUCTS FIBER OPTICS SYSTEM Light Sources 21 Series Techniquip MODEL 21AC Model 21AC Illuminators

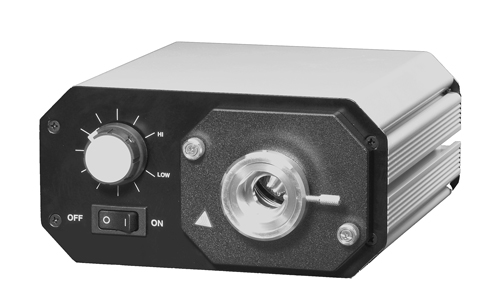

Techniquip Model 21AC fiber optic illuminator - 150 watt halogen general machine vision

MODEL 21AC ILLUMINATORS, fiberoptic illuminators, Lighting for Microscopes, dual gooseneck, fiberoptic ringlights, ring lights, line-light, line light guide, backlights, fiber optic backlight, 150 watt fiberoptic light, 150 watt fiber optic light, 150watt fiber optic light, 150 watt halogen, Model 21AC, model21ac, StockerYale

GENERAL FEATURES:

150 watt quartz halogen light

0 to 100% intensity control

Separate ON/OFF switch to maintain setting

EKE lamp standard (EJA optional)

Over-temp protection

Low noise and vibration

Easy lamp replacement

-20 T-slot runs both sides for mounting

Optional filter holder see filters

Optional IR filters blocks heat

Dimensions :
- Output aperature 1 (25.4mm) standard
- 7.13W x 7.91L x 4H

TUV listed (all models), CE (220VAC only)

Manufacturer : Techniquip Corporation

- Built and tested in the USA



Techniquip Model 21AC fiber optic illuminators:


The Techniquip 21AC series of illuminators were designed to provide a compact, low profile, high output fiber optic illuminator for critical applications such as machine vision. The 21AC is packaged in a stackable extruded aluminum chassis with T-slots on both sides for ease of mounting in equipment. They offer easy lamp changing and extremely reliable performance with low noise and vibration.

We also offer a wide range of light fibers for the 21AC as well as adapters to use the illuminator with your existing fiber optics for an easy upgrade to your system. Available in basic and enhanced models for either 110/120vac or 220/240vac operation. MADE IN USA.


MODELS:


  110/120 VAC Techniquip 21AC Models:



21AC-1KXX-TQB
MSRP: $375.00
Our Price:$324.00

TECHNIQUIP model 21AC-1KXX-TQB
- 150 watt halogen EKE lamp
- 1 diameter nosepiece accepts fiber bundles or reducer sleeves
- Legacy model designation: 21AC1K100X model
- See ANNULAR ADAPTERS below for microscope model specific mounts



Manufacturer: Techniquip Corp (USA)




21AC-1K1X-TQB: Standard model with 0.187 " reducer installed
MSRP: $375.00
Our Price:$324.00

TECHNIQUIP model 21AC-1K1X-TQB
- Same as above (model 21AC-1KXX-TQB) with 0.187 reducer sleeve
  installed
- Allows use of fiber light guides with 0.187" input ferrule
- 150 watt halogen EKE lamp
- See ANNULAR ADAPTERS below for microscope model specific mounts



Manufacturer: Techniquip Corp (USA)




21AC-1K2X-TQB: Standard model with 0.312 " reducer installed
MSRP: $375.00
Our Price:$324.00

TECHNIQUIP model 21AC-1K2X-TQB
- Same as above (model 21AC-1KXX-TQB) with 5/16 reducer sleeve
  installed
- Allows use of fiber light guides with 0.312" input ferrule
- 150 watt halogen EKE lamp
- See ANNULAR ADAPTERS below for microscope model specific mounts



Manufacturer: Techniquip Corp (USA)




21AC-1K6X-TQB: Standard model with 5/8" reducer installed
MSRP: $375.00
Our Price:$324.00

TECHNIQUIP model 21AC-1K6X-TQB
- Same as above (model 21AC-1KXX-TQB) with 0.625 reducer sleeve
  installed
- Allows use with all FOI series standard fibers without reducer sleeves
- 150 watt halogen EKE lamp
- Legacy model designation: 21AC1K200X
- See ANNULAR ADAPTERS below for microscope model specific mounts



Manufacturer: Techniquip Corp (USA)




21AC-1K7X-TQB: Standard model with 0.718 " reducer installed
MSRP: $375.00
Our Price:$324.00

TECHNIQUIP model 21AC-1K7X-TQB
- Same as above (model 21AC-1KXX-TQB) with 0.718 reducer sleeve
  installed (fits Fostec fiber guides)
- Allows use of fiber light guides with 0.718" input ferrule
- 150 watt halogen EKE lamp
- See ANNULAR ADAPTERS below for microscope model specific mounts



Manufacturer: Techniquip Corp (USA)





  220/240 VAC Techniquip 21AC Models:



21AC-2KXX-TQB: Standard 220 volt model with 1 fiber aperature
MSRP: $375.00
Our Price:$324.00

TECHNIQUIP 21AC 220v model 21AC-2KXX-TQB
- 150 watt halogen EKE lamp
- Accepts 1 diameter fiber bundles or reducer sleeves
- Legacy model designation: 21AC2K100X
- See ANNULAR ADAPTERS below for microscope model specific mounts



Manufacturer: Techniquip Corp (USA)




21AC-2K1X-TQB: Standard 220 volt model with 0.187 fiber aperature
MSRP: $375.00
Our Price:$324.00

TECHNIQUIP 21AC 220v model 21AC-2K1X-TQB
- Same as above (model 21AC-2KXX-TQB) with 0.187" reducer sleeve
  installed
- 150 watt halogen EKE lamp
- Allows use of fiber light guides with 0.187" input ferrule
- See ANNULAR ADAPTERS below for microscope model specific mounts



Manufacturer: Techniquip Corp (USA)




21AC-2K2X-TQB: Standard 220 volt model with 0.312 fiber aperature
MSRP: $375.00
Our Price:$324.00

TECHNIQUIP 21AC 220v model 21AC-2K1X-TQB
- Same as above (model 21AC-2KXX-TQB) with 0.187" reducer sleeve
  installed
- 150 watt halogen EKE lamp
- Allows use of fiber light guides with 0.187" input ferrule
- See ANNULAR ADAPTERS below for microscope model specific mounts



Manufacturer: Techniquip Corp (USA)




21AC-2K6X-TQB: Standard 220 volt model with 5/8 fiber aperature
MSRP: $375.00
Our Price:$324.00

TECHNIQUIP 21AC 220v model 21AC-2K6X-TQB
- Same as above (model 21AC-2KXX-TQB) with 0.625" reducer sleeve
  installed
- 150 watt halogen EKE lamp
- Allows use of all FOI series standard fibers without reducer sleeves
- Legacy model designation: 21AC2K200X
- See ANNULAR ADAPTERS below for microscope model specific mounts



Manufacturer: Techniquip Corp (USA)




21AC-2K7X-TQB: Standard 220 volt model with 0.718 fiber aperature
MSRP: $375.00
Our Price:$324.00

TECHNIQUIP 21AC 220v model 21AC-2K7X-TQB
- Same as above (model 21AC-2KXX-TQB) with 0.718" reducer sleeve
  installed (fits Fostec fiber guides)
- 150 watt halogen EKE lamp
- Allows use of fiber light guides with 0.187" input ferrule
- See ANNULAR ADAPTERS below for microscope model specific mounts



Manufacturer: Techniquip Corp (USA)





  Model 21AC ACCESSORIES



green-filter-labomed.jpgFILTERS for Model 21AC
- Requires a model with integral filter holder (e.g 21ACNIR/1K100X/G/CF)



Manufacturer: Techniquip Corp (USA)


sy-nosepiece-reducer-large.jpgNosepiece Reducing Adapters




oem/na.jpgModel 21 Mounting Hardware



Manufacturer: Techniquip Corp (USA)


mr16-generic-large1.jpgEKE
- 21 volt, 150 watt
- MR-16 type (A = 1.750)
- GX5.3 base (2-pin, round pins)
- Average Life : 200 hrs
- Color temperature : 3250 K
- Used in FOI-150, R150, 21AC, 21DC illuminator models




mr16-generic-large1.jpgEJA
- 21 volt, 150 watt
- MR-16 type (A = 1.750)
- GX5.3 base (2-pin, round pins)
- Average Life : 40 hrs
- Color temperature : 3350 K
- HIGHER output (approx 50%) replacement for EKE, notably shorter life
- Used in FOI-150, R150, 21AC, 21DC illuminator models




: PDF DATA SHEET:
 21AC Datasheet



OPTIONS:

for 5/8 aperature models: (only models 21AC1K200X and 21AC2K200X)
Annular fibers for 5/8 illuminators: No adapters needed to use these standard annular fibers
Standard fibers for 5/8 illuminators: No adapters needed to use these FOI standard gooseneck and flexible fibers


for 1 aperature models:
Annular fibers: Provide a shadow-free 360˚ circular field of light
Standard light guides: Various size/length flexible and gooseneck fibers for all applications
