Techniquip Model 21AC Infra-Red Illuminator

Products Catalog» LIGHTING PRODUCTS» FIBER OPTICS SYSTEM » Light Sources 21 Series» Techniquip MODEL 21AC Model 21AC Illuminators




MODEL 21AC ILLUMINATORS, microscope illuminators, fiber optic illuminators, fiberoptic illuminators

MODEL 21AC ILLUMINATORS, microscope illuminators, fiber optic illuminators, fiberoptic illuminators

MODEL 21AC ILLUMINATORS, fiberoptic illuminators, Lighting for Microscopes, dual gooseneck, fiberoptic ringlights, ring lights, line-light, line light guide, backlights, fiber optic backlight, 150 watt fiberoptic light, 150 watt fiber optic light, 150watt fiber optic light, 150 watt halogen, Model 21AC, model21ac, StockerYale

GENERAL FEATURES:

• 150 watt quartz halogen reflector lamp
- Special aluminum coated

• IR Spectral range 700nm to 5 meters

• 0 to 100% intensity control

• Separate ON/OFF switch to maintain setting

• Over-temp protection

• Low noise and vibration

• Easy lamp replacement

•  Ό” -20 T-slot runs both sides for mounting

• Optional Side mount handle

• Optional electronic shutter

• Dimensions :
- Output aperature 1”  (25.4mm) standard
- 7.13”W x 7.91”L x 4”H

• TUV listed (all models), CE (220VAC only)

• Manufacturer : Techniquip Corporation

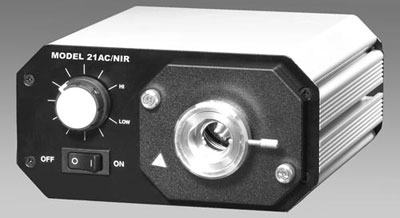

Techniquip Model 21AC/NIR fiber optic illuminators:

The Techniquip 21ACNIR series of illuminators offer low cost, reliable operation for near-infrared and infra-red applications. The 21AC is packaged in a stackable, compact, and low profile extruded aluminum chassis with T-slots on both sides for ease of mounting in equipment. They offer easy lamp changing and extremely reliable performance with low noise and vibration. They are excellent for critical applications that require precision delivery of energy in the NIR and IR regions, such as scientific and machine vision.

We also offer a wide range of light fibers for the 21AC as well as adapters to use the illuminator with your existing fiber optics for an easy upgrade to your system. Available in basic and enhanced models for either 110/120vac or 220/240vac operation. MADE IN USA.


MODELS:


  110/115 VAC NIR Aluminum Reflector Basic Models:



21ACNIR/1K100X/A : 1” input with aluminum lamp
MSRP: $999.99
Our Price:$999.99

TECHNIQUIP 21AC basic model 21ACNIR1K100X/A
- Aluminum coated lamp reflector
- Accepts 1” diameter fiber bundles or reducer sleeves
- See ‘ANNULAR ADAPTERS’ below for microscope model specific mounts



Manufacturer: Techniquip Corp (USA)




21ACNIR/1K200/AX : 5/8” input with aluminum lamp
MSRP: $999.99
Our Price:$999.99

TECHNIQUIP 21AC basic model 21ACNIR/1K200X/AX
- Aluminum coated lamp reflector
- Same as above (model 21ACNIR/1K100X/A) except has 5/8” output aperature
- See ‘ANNULAR ADAPTERS’ below for microscope model specific mounts



Manufacturer: Techniquip Corp (USA)





  220 VAC NIR Aluminum Reflector Basic Models:



21ACNIR/2K100X/A : 1” input with aluminum lamp
MSRP: $999.99
Our Price:$999.99

TECHNIQUIP 21AC basic model 21ACNIR2K100X/A
- Aluminum coated lamp reflector
- Accepts 1” diameter fiber bundles or reducer sleeves
- 220 VAC
- See ‘ANNULAR ADAPTERS’ below for microscope model specific mounts



Manufacturer: Techniquip Corp (USA)




21ACNIR/2K200/AX : 5/8” input with aluminum lamp
MSRP: $999.99
Our Price:$999.99
TECHNIQUIP 21AC basic model 21ACNIR/2K200X/AX
- Aluminum coated lamp reflector
- Same as above (model 21ACNIR/2K100X/A) except has 5/8” output aperature
- 220 VAC
- See ‘ANNULAR ADAPTERS’ below for microscope model specific mounts


Manufacturer: Techniquip Corp (USA)





  Model 21AC ACCESSORIES



sy-nosepiece-reducer-large.jpgNosepiece Reducing Adapters




oem/na.jpgAdapters for fitting Gooseneck Fibers:



Manufacturer: Techniquip Corp (USA)


oem/na.jpgModel 21 Mounting Hardware



Manufacturer: Techniquip Corp (USA)


mr16-generic.jpgReplacement Lamps for 21AC/NIR models
- Visible/IR spectrum enhanced
- 21 volt, 150 watt; MR-16 type,GX5.3 base
- Call for lead time, typical 2+ weeks
- ONLY to be used in 21ACNIR series illuminator models



Manufacturer: Techniquip Corp (USA)


: PDF DATA SHEET:
 21AC/NIR Datasheet



OPTIONS:

Fiber optics for 5/8” aperature models: (1" aperature models require reducer #30123177)
* Important: The links below should only be used as a reference of available fiber light guides.
                    Fiber optics used with these illuminators need special heat sinking to prevent fiber damage.
                    CONTACT us for further details and pricing


• Annular fibers for 5/8” illuminators: No adapters needed to use these standard annular fibers
• Standard fibers for 5/8” illuminators: No adapters needed to use these FOI standard gooseneck and flexible fibers

OTHER Related Items:

• Fiber Optic Illuminators: Complete selection of fiber optic light sources and fiber guides
• Fluorescent Ringlights: Selection of fluorescent ringlights and adapters
