MEIJI MT8500 Metallurgical Microscopes

Products Catalog Microscopes INDUSTRIAL Compound Meiji MT8500 Metallurgical Microscopes

Products Catalog MICROSCOPES by SPECIALTY Semiconductor Inspection Meiji MT8500Metallurgical Microscopes

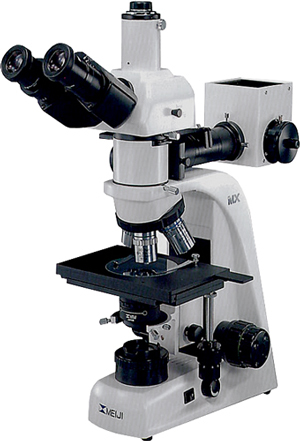

 MEIJI MT8500 Metallurgical Microscope for brightfield / darkfield transmitted and reflected light observation, MT8520, MT8530,  infinity corrected optics
GENERAL FEATURES:

New design Brightfield/darkfield Plan optics
- Infinity corrected ICOS series

Reflected and Transmitted light observation

50W Koehler reflected light illumination
- 30W Koehler transmitted

Siedentopf design view heads
- Optional tilting model

Widefield High eyepoint eyepieces

ALL series come standard with:
- 4 x 4 travel stage
- 5/10/20/50X objectives
- SWH10/22 eyepieces
- Quadruple nosepiece
- Blue,Green,ND50,POL filter set

Brightfield, Darkfield, Simple POL modes

Dimensions (D x W) : 263mm x 176mm

Manufacturer: Meiji Techno - Japan



Meiji MT8500 Brightfield/Darkfield Microscope:

The Meiji MT8500 microscope provides brightfield and darkfield observation modes in both transmitted and reflected light. The Meiji designed infinity corrected EPI Plan optics combined with Koehler illumination provide excellent clarity, contrast, and flat field for metallurgical microscopy. Auto-sensing power supplies assure worldwide operation.



MODELS:


  QUICKORDER CONFIGURATIONS



MT8520 Configuration: Brightfield / Darkfield - Binocular
MSRP: $8,600.00
Our Price:$7,480.00

- Siedentopf Binocular View Head (MA815)
- SWH10X/220 eyepiece F.N 22 (MA817)
- Plan Epi 5X / 0.10 BD objective, WD = 17mm (MA923)
- Plan Epi 10X / 0.25 BD objective, WD = 7.48mm (MA924)
- Plan Epi 20X / 0.40 BD objective, WD = 5.20mm (MA925)
- Plan Epi 50X / 0.75 BD objective, WD = 0.38mm (MA926)
- Stage: 4 x 4 travel ceramic coated flat top (MA942)
- 12V 50W Halogen Koehler vertical Illuminator (MA928)
- 6V 30W Halogen Koehler transmitted Illuminator




Manufacturer: Meiji Techno




MT8530 Configuration: Brightfield / Darkfield - Trinocular
MSRP: $8,800.00
Our Price:$7,655.00

- Siedentopf Trinocular View Head (MA816)
- SWH10X/220 eyepiece F.N 22 (MA817)
- Plan Epi 5X / 0.10 BD objective, WD = 17mm (MA923)
- Plan Epi 10X / 0.25 BD objective, WD = 7.48mm (MA924)
- Plan Epi 20X / 0.40 BD objective, WD = 5.20mm (MA925)
- Plan Epi 50X / 0.75 BD objective, WD = 0.38mm (MA926)
- Stage: 4 x 4 travel ceramic coated flat top (MA942)
- 12V 50W Halogen Koehler vertical Illuminator (MA928)
- 6V 30W Halogen Koehler transmitted Illuminator





Manufacturer: Meiji Techno





  OPTICAL COMPONENTS: (Build up your own configuration)



MA815: Binocular View Head
MSRP: $480.00
Our Price:$430.00

- Siedentopf design
- 30 inclined
- Interpupillary range : 53mm - 75mm
- Graduated diopter on left eyetube (30mm eyetube)
- Eyepieces not included



Manufacturer: Meiji Techno




MA816: Trinocular View Head
MSRP: $680.00
Our Price:$612.00

- Siedentopf design
- 30˚ inclined
- Interpupillary range : 53mm 75mm
- Graduated diopter on left eyetube (30mm eyetube)
- Eyepieces not included



Manufacturer: Meiji Techno




MA957: ERGONOMIC binocular View Head
MSRP: $780.00
Our Price:$702.00

- Siedentopf design
- Tilting range10˚ to 30˚ incline
- Interpupillary range : 53mm 75mm
- Graduated diopter on left eyetube (30mm eyetube)
- Eyepieces not included



Manufacturer: Meiji Techno




oem/na.jpgEyepieces : (30.0 mm O.D Eyetube)




planepi_bd_objectives-sm.jpgObjectives: Brightfield / Darkfield, EpiPlan, Infinity corrected.





  MODULAR ACCESSORIES



ma928_bd_vertical-sm.jpgMA928 - These items are included standard on MX7520 and MX7530 models




oem/na.jpg
MA958: Photo/Video Attachment for ERGO head (MA957)
MSRP: $500.00
Our Price:$450.00
- 80/20 sliding beam-splitter
- Necessary for camera use with ergonomic (tilting) head

Manufacturer: Meiji Techno




oem/cox_filters-large1.jpgCoaxial Filter Sets




oem/meiji_cmount_lens-large1.jpgC-Mount Video Lenses
-Use with Model IM7200 Microscope
-Use with MA816/10 trinocular head option





  STANDS & STAGES



oem/na.jpg
MA942 : Mechanical stage
MSRP: $600.00
Our Price:$540.00
- 4 x 4 travel ceramic coated
- Flat top plate

Manufacturer: Meiji Techno




meiji_lwd_bf_obj-sm.jpgObjectives : Brightfield, EpiPlan, Infinity Corrected




infinity1-product-1.jpgInfinity 1

- Includes imaging and archiving software (Windows Xp, 2000, Vista)
- USB2.0 high speed interface required
- Use with 0.5x C-mount adapter #3136010 not included






cross-line_reticle_nosc-sm.jpgEYEPIECE RETICLES Cross line (no scale)
-For MA817 & MA859 eyepieces (25mm diameter) use MA523 : Crossline
-For MA818 & MA819 eyepieces (19mm diameter) use MA279 : Crossline




oem/xaxis_graduated_reticle-lg1.jpgEYEPIECE RETICLES Linear scale

For MA817 & MA859 eyepieces (25mm diameter) use MA506 : 10mm divided into 100 units or MA509 : 5mm divided into 100 units

For MA818 & MA819 eyepieces (19mm diameter) use MA280 : 10mm divided into 100 units or MA281 : 5mm divided into 100 units






infinity2-1.jpgInfinity 2

- Higher low light sensitivity than CMOS cameras (excellent for phase contrast)
- Includes imaging and archiving software (Windows Xp, 2000, Vista)
- USB2.0 high speed interface required
- Use with 0.5x C-mount adapter #3136010 not included






Stage Micrometer Metal for reflected light





oem/cross-line_reticle_grad1.jpgEYEPIECE RETICLES Cross scale

For MA732 & MA734 eyepieces (19mm diameter)
For MA817 & MA859 eyepieces (25mm diameter) use MA542 : Cross-line with 0.1mm ticks
For MA818 & MA819 eyepieces (19mm diameter) use MA539 : Cross-line with 0.1mm ticks






oem/na.jpg
MA709: Dust cover
MSRP: $12.00
Our Price:$10.00






312086.jpgHalogen Lamp




: PDF DATA SHEET:
 Meiji MT8500 Specifications.PDF
