ErgoVu® Manual Inspection Booths
GENERAL FEATURES:
- Multiple model and size options; ErgoVu-60, ErgoVu-50, ErgoVu-50C, ErgoVu-30, ErgoVu-20, custom to spec.
- All of our models are designed to meet and exceed USP 790 and USP 1790 inspection illumination requirements
- Now featuring our new generation EcoPHOT2™ RP series High Intensity LED superior illumination
- 5000K homogenous Lambertian white light, fully adjustable regulated output
- Silent operation offering very long service life and Non-glare design for operator comfort
- TOP and/or BOTTOM lighting options, wide field option, higher output options, light spectrum options
- Motorized lift option - Silent, smooth motion via user hand switch with optional memory settings - Table lift travel 25” - 52” with no operator leg obstruction
- CLEAN ROOM compatible materials and surfaces - High strength aluminum framing - Aluminum sound deadening enclosure panels - Durable neutral grey powder coat exterior finish
- Choice of tabletop surfaces - Homogenous neutral grey machined (Corian type material) - Stainless steel; brush or polished finish - Hard anodized (type III) aluminum
- Ergonomic user designed - Full backpanel ultra-matte black/white - optional b/w contrast plate with adjustable vertical position - Left/right adjustable height Reject tray holder (ErgoVu-60)
- Operator interface options - manual to motion detecting semi-automatic operation
- Built to last - only top quality components used - provides Proven exceptional reliability
- Proudly MADE in USA
- CE Certified versions available
- Fully Customizable to meet your requirements
- High output adjustable UV-A LED version available for Conformal Coating Inspection
- ErgoVu® System Models Comparison Chart
Ergonomic Inspection Booths
We offer the ErgoVu® range of ergonomically designed visual inspection booths (aka: Manual Inspection Booths) and motorized work tables for general tasks. Our custom designed and built stations are in use at major pharmaceutical and biomedical companies and have a proven high reliability record since their launch in 2005.
Our ErgoVu® inspection systems and tables provide adjustable height table surfaces (25"-52" travel) with radiused front edges for operator comfort and efficiency. The motorized motion is quiet and smooth, allowing operators to find the correct working position to eliminate fatigue. All systems are designed and built in the USA using only the finest materials for a long operational life.
We can also provide an ergonomic consultant that can work on-site with your company to provide the best solutions for the operator tasks and reduce or eliminate expensive workman comp claims.
We offer many optional accessories to complete the package, from multi-spectrum LED customized illumination, higher output options, operator interface options and more. We can also custom build our stations to fit your needs; dimensions, work surfaces and illumination.
Models

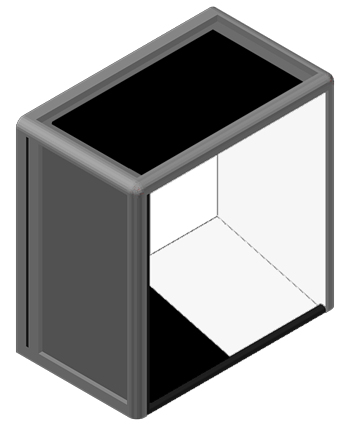

ErgoVu-20® compact inspection Booth
The ErgoVu-20 ergonomic inspection booth is available in a table or optional wall mount configuration
- Lower cost, small footprint model (22" wide)
- EcoPHOT™ LED Top side illumination only
- Manual controls only; no digital operator interface options
- Only the finest, cleanroom compatible materials and finishes
- Made in USA

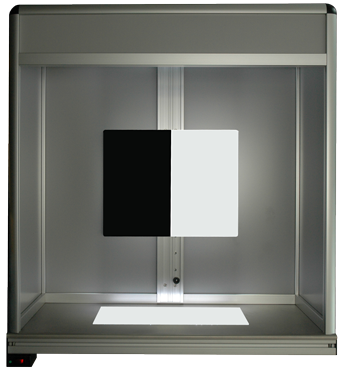

ErgoVu-30 compact inspection Booth
The ErgoVu-30 ergonomic inspection booth is available in a table, wall mount or motorized lift configuration
- It has all the advanced features of the ErgoVu-60 but in a compact footprint design
- Choice of table top surfaces; stainless steel, hard-anodize aluminum, or Corian type material
- Made in USA

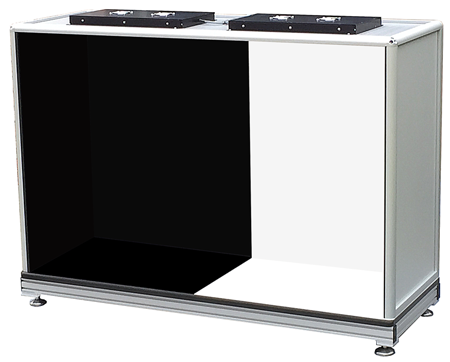

ErgoVu-50 Series USP 790 Manual Inspection Booth
The ErgoVu-50 or 50C inspection booths were designed for USP 790 inspection of IV solution bags.
- Larger footprint model ErgoVu-50: 48"W x 32"H x 16"D
- Compact model ErgoVu-50C: 38"W x 32"H x 16"D (most popular)
- LED high output dual TOP uFine regulated illumination
- 50/50 Black/White split matte finish interior inspection area
- LED high output dual TOP uFine regulated illumination
- Choice of table top or motorized lift models
- Multiple operator interface options and controls
- Quality built using cleanroom compatible surfaces and finishes
- Made in USA

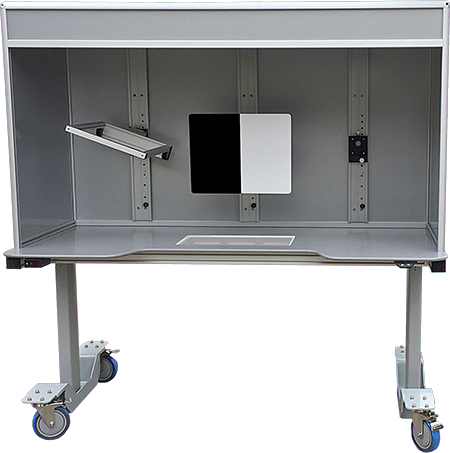

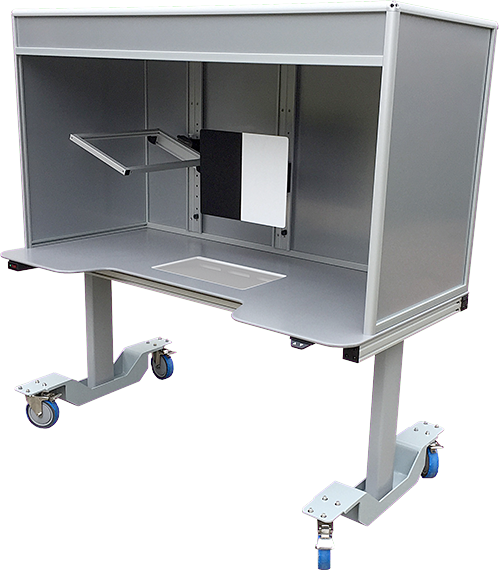

ErgoVu-60 Inspection Booth
The ErgoVu®-60 ergonomic, motorized lift inspection booth. High output, long life LED illumination
- Available with TOP and/or BOTTOM uFine regulated illumination
- Table surface lift range from 25" to 52". Quality built using cleanroom compatible surfaces and finishes
- Choice of table top surfaces; stainless steel, hard-anodize aluminum, or Corian type
- Made in USA
ErgoLiftR Motorized Lift Tables
The ErgoLiftR series of motorized lift tables are available in most standard sizes and custom to your needs
- The systems offer 27" of lift range (25" - 52") to match our ErgoVu motorized systems
- The table top can be solid stainless, perforated stainless
- Corian type material, or hard anodized aluminum
- Contact us for custom sizes
