HDMI Digital Microscope Cameras

PIXERA Digital Research Cameras; available in 1.5 megapixel and 6 megapixel CCD models, color or monochrome, cooled (150cl, 150clm, 60cl, 600clm) and uncooled sensors (150es, 150esm, 600es, 600esm) � excellent for fluorescence applications

GENERAL FEATURES
PDF DATA SHEET

� HDMI Interface (direct to monitor)

� True 16:9 720p format

� 1/3" CCD Sony Color Sensor

� Pixel size: 3.75�m x 3.75�m

� 28 DSP programmable features

� Fast frame-rate; 60 fps @ 1280x720

� Shutter speed; up to 1/100,000 second

� Built-in camera features:
Line generator XY
Shadow mask generator
Character generator
Line generator XY

� 12Vdc Power supply included

� Dimensions: 40mm(w)x 40mm(h)x45.8mm(d)

HDMI HD camera overview spec

HDMI HD Camera models:

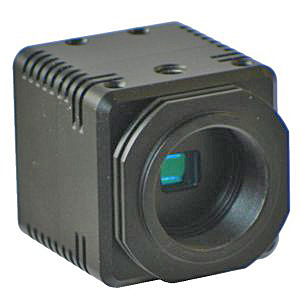

The OEM-HD133DV camera offers an ultra compact design, industrial grade construction, and the convenience of a HDMI output for direct connection to a wide-screen monitor. Output is a true 720p using a high performance Sony 1/3� color CCD sensor providing a 16:9 image at a very fast 60 fps refresh rate. Additional features are the capability to program 28 individual DSP profiles, programmable in-camera push button manual control, as well as an available plug-in remote control.
Also available as a board level camera for integration into systems.

Options:
