Lumenera_Infinity_Lite_LiteB_digital_microscope_camera

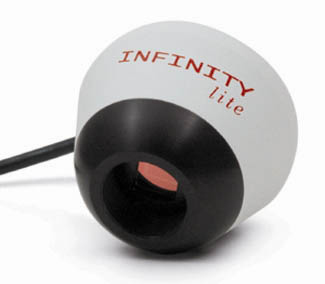

Lumenera CMOS INFINITY Lite series digital microscope cameras. Designed for academic and entry level users. Robust construction to withstand heavy useage.

GENERAL FEATURES
PDF DATA SHEET

� 1.5 MegaPixel Color 0.4" CMOS Sensor

- 1440 x 1080 with ROI and Binning options

- 4.2um x 4.2um pixels

� C-mount lens mount - best with 0.4x

� Auto/manual Exposure control

� Auto/manual White balance

� Programmable Gain control

� USB 2.0 interface; bus power or external 5vdc

� Included software:
- Infinity Capture - Basic capture and video
- TWAIN 3rd party software interface
- Infinity Analyze - Available in LuIAP-1 Optional Package

� Warranty: 2 years
- Optional LuIAP-1 package extends to 5 years

� All camera models are RoHS compliant

� Dimensions 3.85� L x 2.00� W x 2.75� H

� Manufacturer: Lumenera Corp

INFINITY LiteB Spec Sheet

Lumenera Camera Cross Reference Chart

Lumenera Infinity Camera Series Overview Brochure

Infinity Analyze overview video

Lumenera Infinity Camera FAQ's

Lumenera Warranty Policy

Advantage Pack Details

Lumenera Infinity Lite B CMOS Educational Level Camera

The Lumenera INFINITY Lite B CMOS camera provides a low cost entry level solution for digital image capture. Designed primarily for the educational market it would also be suitable for non-critical industrial applications. The basic software provides general image capture control and the TWAIN driver makes possible the use of 3rd party imaging software (Photoshop, etc). A MAC compatible driver is also included. They are best suited for applications with moderate to high levels of available light (e.g. � Brightfield, reflected and transmitted microscopy).

The Lite model comes with basic capture and TWAIN software packages. We also offer more advanced software packages.

� Infinity 2 series: CCD high sensitivity models ranging from 1.4MP to 3.2 megapixel models

� Infinity 3 models: CCD peltier cooled 1.4 megapixel models for very low light applications (color or monochrome)

� Infinity 4 models: CCD large format (35mm) 10.7 megapixel models (color or monochrome)

� Infinity X models: CMOS variable resolution 1.3 - 21 megapixel models (color or monochrome)

� Infinity X32 models: CCD high sensitivity variable resolution 2 - 32 megapixel models (color or monochrome)

Options: � Camera Adapters : C-mount adapters for all microscope makes and models

� Camera Software : Various software packages for the Lumenera cameras
