Wide Range Inspection with comfort
Our zoom inspection systems can be used to resolve many costly ergonomic inspection issues. The
camera/lense module is mounted on a very stable boom arm stand which allows a
wide range of working clearance options: close (7) for maximum magnification or
further away (up to 18) when additional room is needed for operations such as soldering or

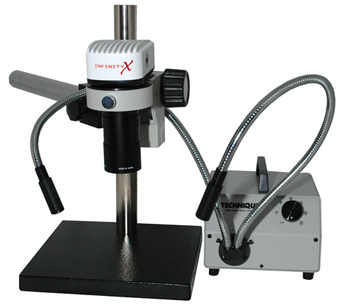

rework. The long reach boom-arm can be swung out of the way when not needed. Table stand models are also available when a boom-arm stand is not necessary. The
lense system provides a 10:1 zoom with a wide range of magnifications possible
(1.3x 50x) depending on working distance. We also offer optional/removable
optical extenders (1.5x and 2x) when greater magnifications are needed.
The
following images represent the effective overall magnification of the systems
(without extender lenses) at both minimum (7) working distance and maximum (18) working
distance.
