Techniquip MODEL 21DC ILLUMINATORS

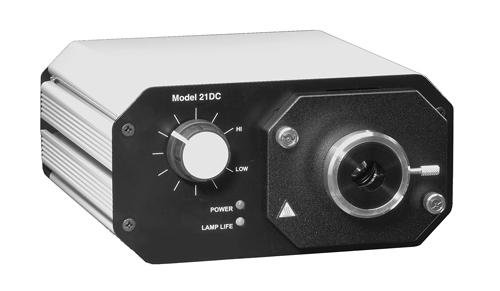

Techniquip Model 21DC fiber optic illuminator - 150 watt halogen regulated DC output

GENERAL FEATURES
PDF DATA SHEET

• 150 watt quartz halogen illuminator
   - 0 to 100% intensity control
   - Separate ON/OFF switch to maintain setting
   - Current Regulated, DC output
   - Over-temp protection

• Remote analog control 0-5VDC
   - RS232 control requires external module - see PDF

• Universal input; 90-254 VAC / 47-63 Hz

• ¼” -20 T-slot runs both sides for mounting

• Optional filter holder — see filters

• Optional IR filters blocks heat

• Dimensions :
   - Universal input; 90-254 VAC / 47-63 Hz
   - Output aperature 1” (25.4mm) standard
   - 7.13”W x 7.91”L x 4”H

• UL, CE, TUV listed (all models)

Model 21 DC

RS232 Intensity Control

Models

21DC-3KXD-TQB: Standard model

Techniquip Corp (USA)

Price: ~~$900.00~~ $810.00

21DC-3K6D-TQB: Standard model with 5/8" reducer installed

Techniquip Corp (USA)

Price: ~~$900.00~~ $810.00

OTHER ACCESSORIES

Nosepiece Reducing Adapters

Techniquip Corp (USA)

Price: $45.00

EKE Lamp for FOI-150 PowerCube

Price: $18.00

Options:

for 5/8” aperature model: (21DC-3K6D-TQB only)
• Annular fibers for 5/8” illuminators: No adapters needed to use these standard annular fibers
• Standard fibers for 5/8” illuminators: No adapters needed to use these FOI standard gooseneck and flexible fibers

for 1” aperature models:
• Annular fibers : Provide a shadow-free 360˚ circular field of light
• Standard light guides : Various size/length fibers for all applications

• Filters : Wide range of color and neutral density filters available
• Replacement Lamps
