VIDEO CAPTURE MODULE

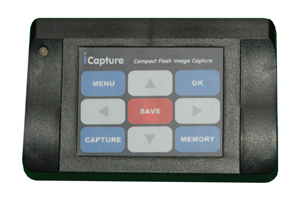

Topview

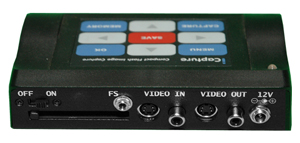

Rearview

GENERAL FEATURES
PDF DATA SHEET

� Convenient S-video (VGA) image capture

� Capture to compact flash card (CF)

� S-video and composite inputs

� Membrane keypad

� Stand-alone operation; no PC

� Inserts between camera and monitor

� Includes:

128MB CF card

USB card reader

Power supply

Capture Flash Pro

Simple S-video Capture

The Video Capture Module provides the ability to capture S-video from live sources onto Compact Flash (CF) media. The CF card can be read at a later time on a remote PC using the supplied USB card reader module. This is excellent for production environments where occasionally images may need to be archived and a PC is not available.

Options: DIGITAL VIDEO COMPONENTS
Digital Crosshair Generator
S-Video to VGA converter box; converts S-video signal to standard VGA monitor signal
Video Inspection Systems: Complete S-Video and Digital camera optical inspection systems
