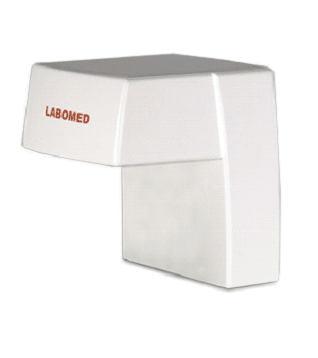

Labomed iVu3000 Digital Camera - Firewire™

Products Catalog» DIGITAL IMAGING» Digital Microscope Camera Overview» Industrial Grade» Labomed iVu3000 Digital Camera - Firewire™

iVu3000, Jenoptik, ProgRes CT3, iVu3000, digital microscope camera, firewire camera, firewire, megapixel camera, research camera, biomedical camera, pathology camera, Firewire camera, Firewire, IEEE 1394, CCD camera, digital microscope camera, high performance cameras, CCD sensor, megapixel cameras

GENERAL FEATURES:

• ½” CMOS Color sensor (2048 x 1536)

• 3.15 Megapixel 10 bit RGB

• 35 fps @ 682 x 512 preview

• C-mount interface (0.5x adapter required)

• Auto/manual White Balance / Exposure control

• Programmable Gain control

• Firewire IEEE 1394a interface

• Powered via Firewire interface

• Dimensions 3.50” L x 3.30” W x 3.66” H

• PC:Windows 2000 / XP / Vista
Mac: Osx 10.4 or higher 3GHz CPU

• Included software:
- ProgRes CapturePro
- CapturePro TWAIN

High performance CMOS

The iVu3000 CMOS digital camera provides excellent color reproduction with 3.15 MP of resolution. The frame refresh rate benefits from a high speed Firewire interface providing up to 35 fps depending on preview resolution. The iVu 3000 offers an excellent cost/performance balance. Well suited for most applications with moderate to bright light levels (e.g. –phase contrast, darkfield, brightfield, transmitted/reflected light microscopy).

MODELS:

3143300: iVu3000 CMOS Digital Camera

Labo America (Labomed)

Price: $1,934.00 $1,645.00

: PDF DATA SHEET:

Labomed iVu3000 Spec Sheet

OTHER MODELS:

• Infinity 1 series: CMOS lower cost models ranging from 1.3MP to 5MP (color or monochrome)– USB2.0
• Infinity 2 models: CCD 1.4MP to 3.2MP models for high end applications (color or monochrome) – USB2.0
• Infinity 3 models: CCD peltier cooled 1.4MP models for very low light applications (color or monochrome) – USB2.0
• Infinity 4 models: CCD large format (35mm) 10.7 MP models (color or monochrome) – USB2.0
• Infinity X models: CMOS variable resolution 1.3 - 21 MP model (color or monochrome) – USB2.0
• Infinity X32 models: CCD variable resolution 2 - 32 MP model (color or monochrome) – USB2.0
• Pixera Research Models: CCD research grade cooled/uncooled cameras to 6 MP (color or monochrome) – PCI interface

OPTIONS:

• Camera Adapters : C-mount adapters for all microscope makes and models
• Camera Software : Various software packages for the Lumenera cameras
